Cable to the Remote Sensor Display is for power and local alarm outputs.

Cool Dog Watch
Temperature Alarm System for animal transport trailers

Available directly from us or on Amazon.com

The Cool Dog Watch (CDW) will monitor and alarm up to 4 temperature and one voltage sensor(s). Two temperature and one voltage sensors are included with the Main unit. Each sensor is independently programmable for a high temperature alert and the voltage sensor for low voltage alert.

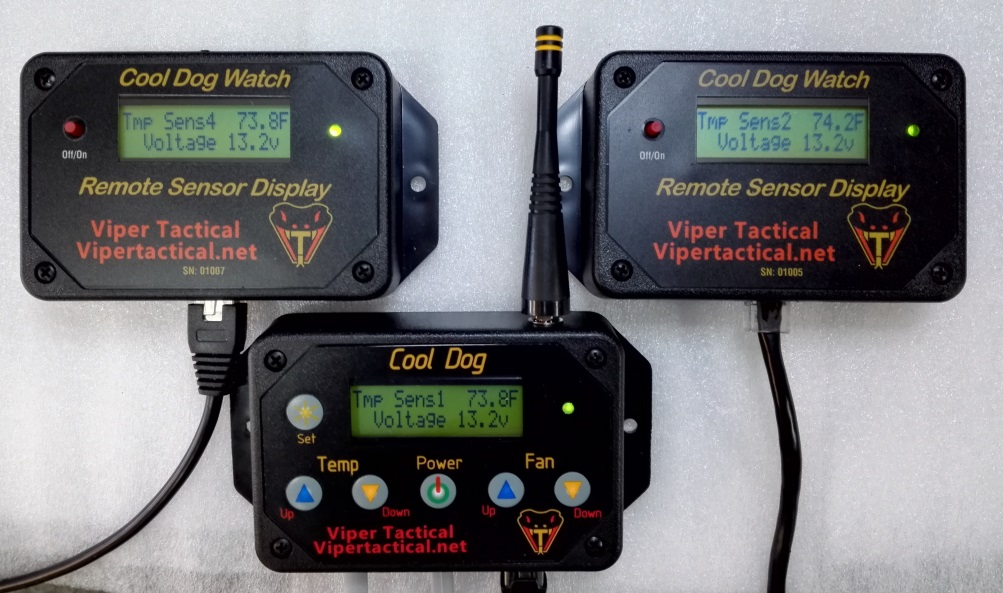

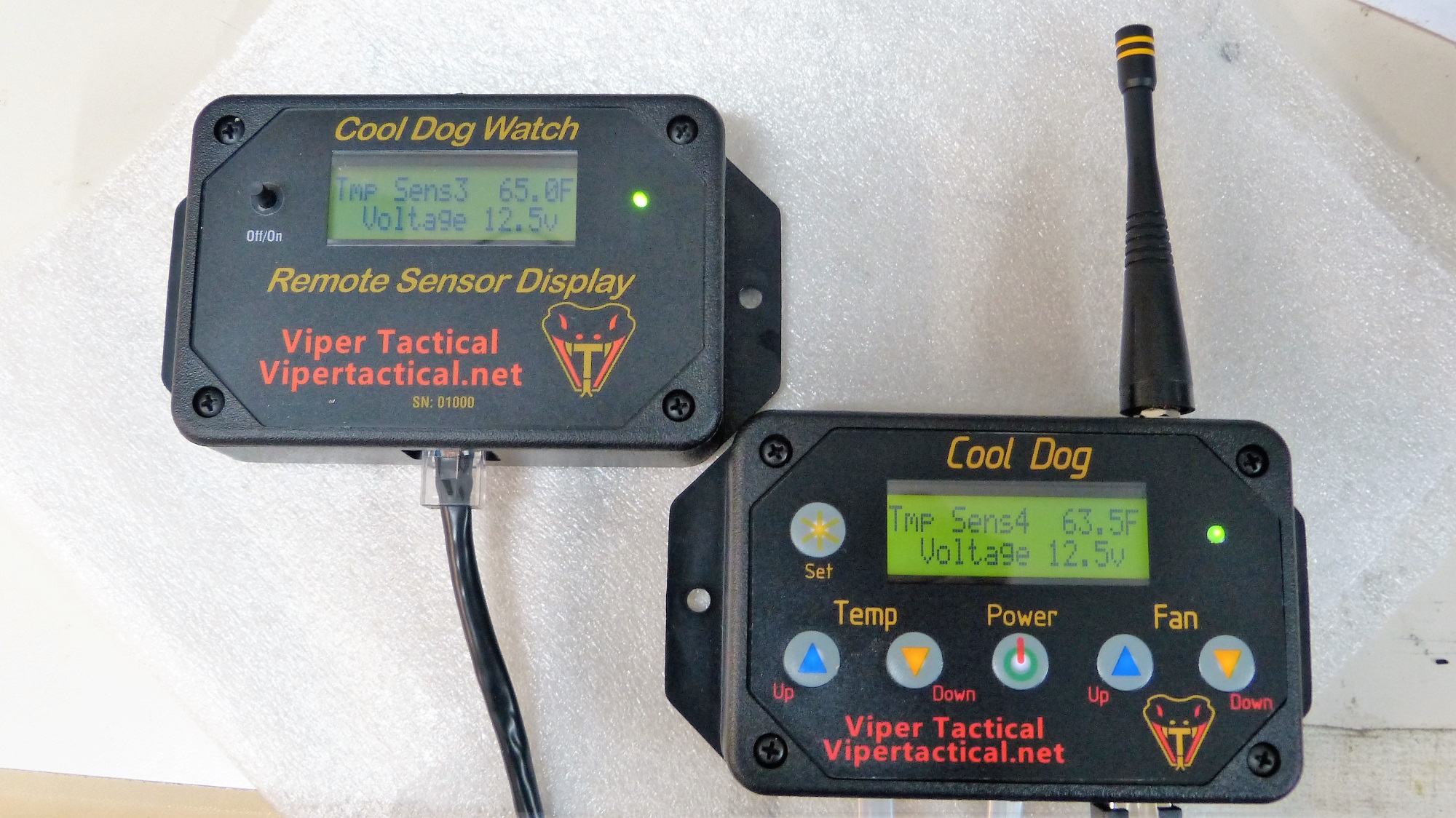

As an option, the CDW can wirelessly display the sensor and alarm information to a CDW remote sensor display unit, which has a 150 foot range. This allows monitoring of the temperatures and voltage of the animal transport trailer while in motion from the drivers compartment or tow vehicle. The system is also capable of multiple remote display units wirelessly connected to a single CDW unit.
The CDW remote display does use external power. A CDW remote display is included in the CDW "complete" package.

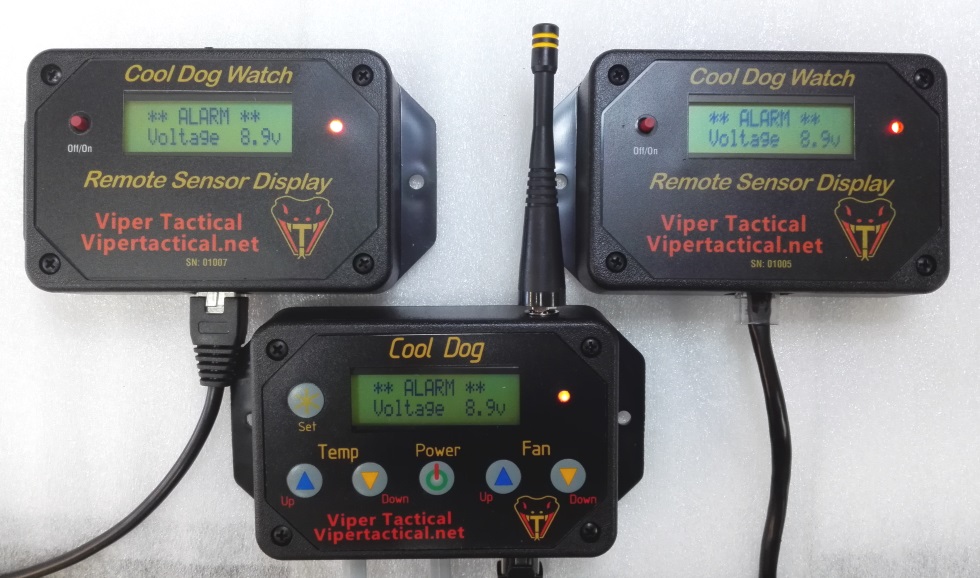

If an alarm condition occurs the LCD will switch to the sensor(s) that have triggered the alarm condition. If more than one sensor has triggered the alarm condition, the LCD will scroll through each alarm sensor. This allows the user to quickly address the problem area.

Both the Main unit and remote display unit have 4 alarm outputs with different signaling formats. If an alarm condition occurs, all 4 formats become active at the same time insuring maximum notification of a alarm condition in the animal transport trailer.

Temperature range in the standard unit is from 30F to 230F. Voltage sensor from 8v to 28v.
        High temperature version 15F to 300F available as an option.

The Cool Dog Watch is offered in 3 different packages:


• Standard unit, Cool Dog Watch stand alone with 2 sensors. (no wireless capability) CDW Basic Layout

• Standard unit, Cool Dog Watch, stand alone with 2 sensors and wireless capability (Remote Display is an option)
  For both standard units, 4 sensor is an option.

• Complete unit, Cool Dog Watch, Remote display, Accessory unit, 4 sensors. CDW Complete Layout



  Main Components Consist of:

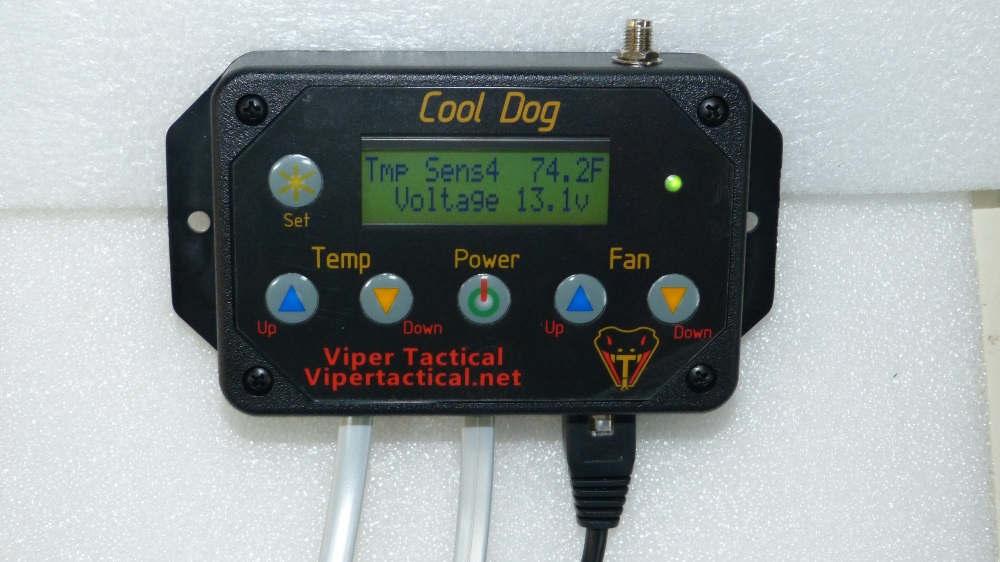

  Cool Dog Watch (CDW)




• Main unit installed in trailer.

• Monitors temperature and voltage.

• 2 standard (additional 2 sensors are an option) independent programmable heat sensors and one programmable low voltage sensor.

• Standard temperature sensor range is from 30F to 230F.

• Voltage sensor is programmable from 8v to 28v and its application is as a low voltage alarm.

• Includes one 12’ sensor cable with two 3’ pigtail sensor. Custom cabling also available at no to a minimal charge.

• Four different alarm outputs with different patterns.

• Cool Dog Watch has wireless connection range of 150’ with the CDW Remote Display. (option for the basic version)

• Choice of Fahrenheit (factory default) or Celsius. (Request Celsius when ordering.)

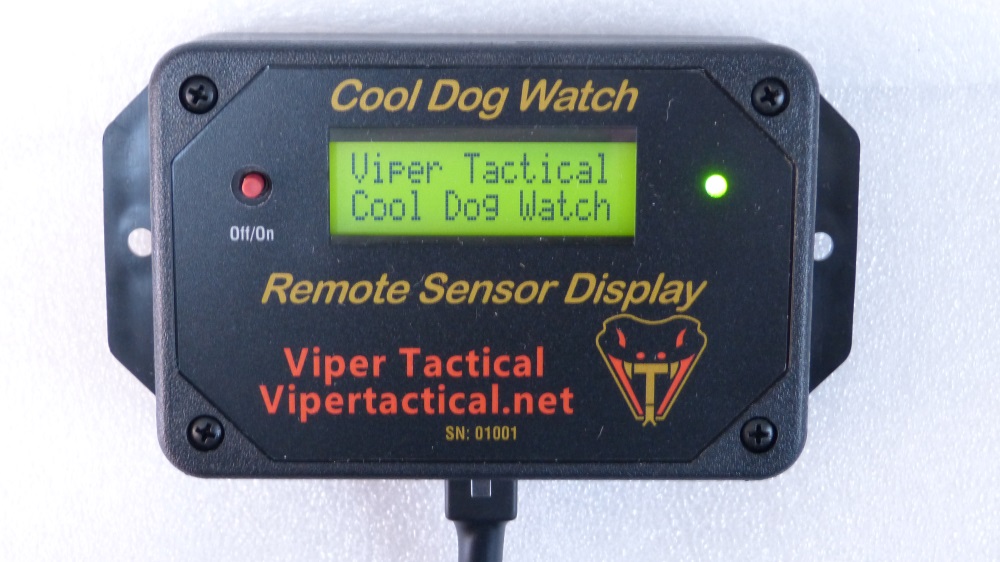

  CDW Remote Display



• Installed in towing vehicle or other remote location. operates on 8-28v, 2 power cords included, fixed wiring and lighter plug.

• Displays temperature, voltage readings from the Cool Dog Watch and alarm status if active.

• Temperature sensor readouts are sequentially scrolled with each sensors detected temperature. Constant voltage monitoring displayed. (8-28vdc)

• Four different alarm outputs with different patterns. (requires fixed wiring cable, included.)

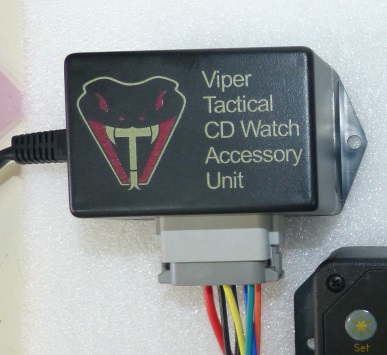

  CDW Accessory Box




• Preferable method for adding pager, lights, and horn alarms to any component for ease of installation.

  Cool Dog Watch Basic


• Standalone system confined to the trailer.

• No wireless connection.

• Does include alarm outputs for flashing lights or horn alarm (low current).

• Four different alarm outputs with different patterns.


  Options:


• Paging System ($285) is available for all components of the Cool Dog Watch.

• Accessory Unit ($125) simplifies high current (20A) load driving and connections. Switched ground (standard) or 12v switching (on request), optional fan driver for Up to a single 15" fan ($50).
  Fan driver & fan itself are optional. Fan will run at high speed in an alarm condition.

• CDW remote display ($325) requires a CDW that has the wireless option installed.

• Wireless option for the CDW (Basic). (for use with the CDW remote display) ($50)
  Does not include the CDW remote display unit.

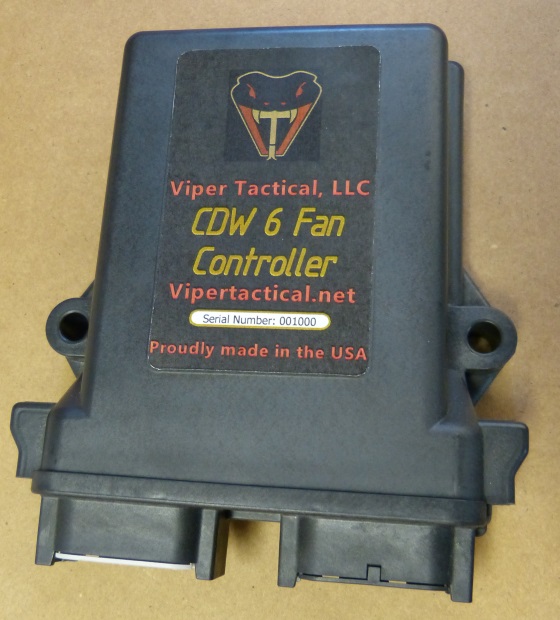

• 6 fan driver unit ($225, includes fan control option, Accy unit not included or required). 6 fan driver unit can operate up to 6 12" fans (or smaller). all 6 fans will run at the same manually set speed. High speed in a alarm condition.
  6 fans will draw a significant amount of power (current, ~25A) and needs to have a substantial battery or in the case of a generator equipped trailer, suitable power supply with very good regulation and filtering.



• 2 Sensor cable with 2 sensors ($40)

• Sensor Cable ($20)

• Sensor ($15 ea)

  Two year warranty.
  Basic system priced at $425, complete system at $825, all systems are customizable and quantity discounts can be applied.


  Pricing, Questions or more information about the CDW? email us, or call us at 425 341 0529
