Similar to the Sentry, but includes enhanced features. Main unit is a larger, sealed Deutsch enclosure.
- Small, lightweight, both boxes weigh less than
one pound
- Main unit is sealed, can be mounted in the
engine compartment or trunk
- Simple operation, once the alarm temperature is
set, just turn it on
- 4 individual, User settable sensors, 32F-230F, High temperature alarm
- Input voltage sensor, low voltage alarm point user settable, 10-16vdc

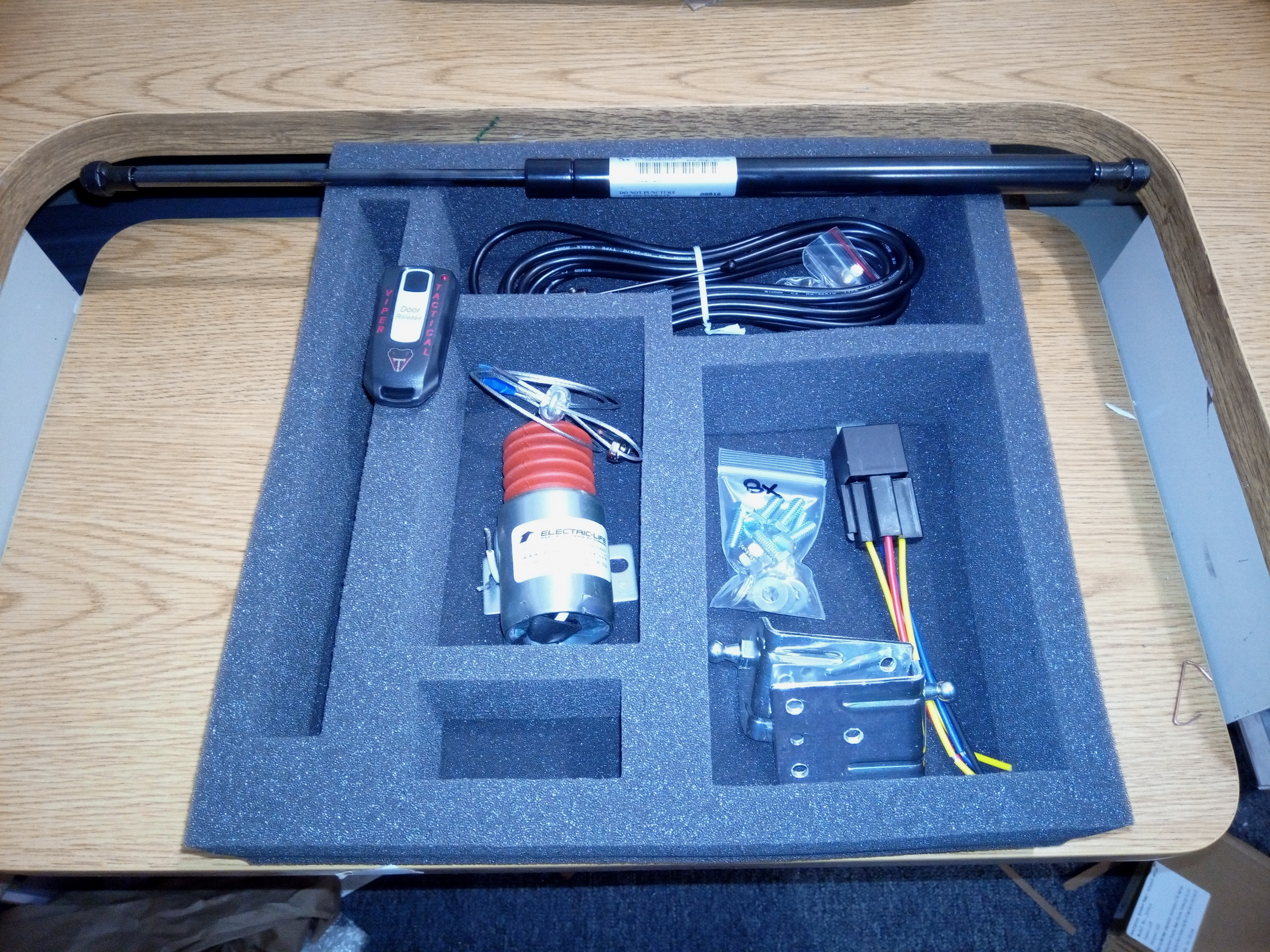

- Two (2) window drop included

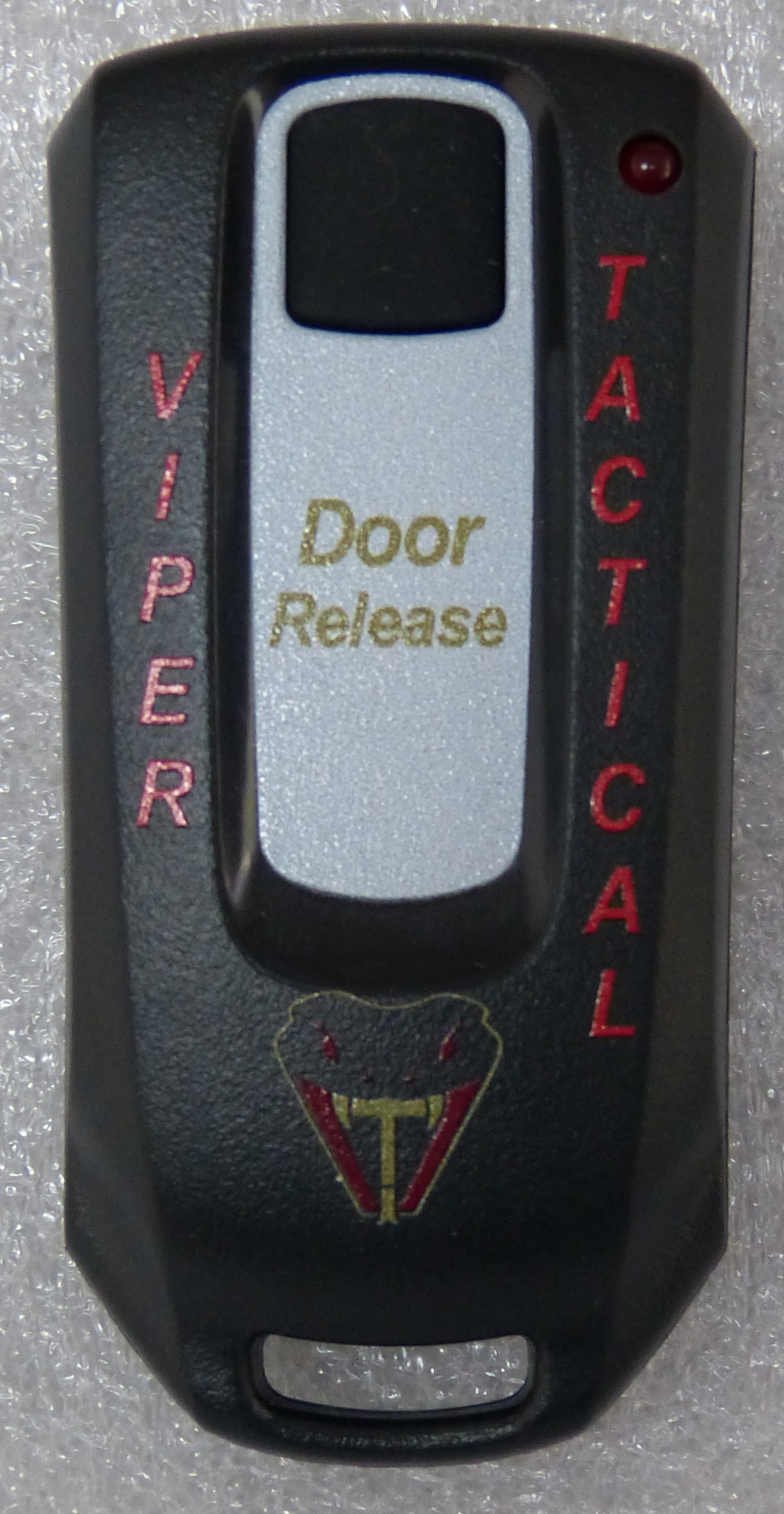

- Wireless dual code Remote. One button door release, (unlock then unlatch) 60# Gas strut assisted opening
- VSS (vehicle Speed Sensor), Park positive or ground door opener inhibit
- Unlatch solenoid included (45# pull)
- Accessory Output included (one second on, 3 second off) for horn, siren, and/or lights.
- Back lighted LCD display, scrolls through each sensor
- Antenna for door opening system, 4 different antennas to choose from, shown below
- Built in fan controller (fan is optional)
- 10 foot control unit cable included, custom lengths available upon request.(Up to 50’)
- Very low power consumption, standby (monitoring) less than 50mA, Alarm condition
250mA, Fan running 3-7A, (if 12v is supplied from Main unit, depends on the size of the fan)
- Unit uses a 3A fuse, can be connected to any 12v source, an unswitched 12v source is
recommended. (10” or larger fan uses a 7.5A fuse, fuse is included)
- Easy Installation
- Alarm condition will turn on optional fan at high speed (fan size options, 7.5”, 10”, 12”, 15”)
- Auto On, when 12v is applied the unit, unit will automatically turn on. (can be changed to manual on, per request)
- Optional paging system
- Optional external sensor active low trigger input
- Two (2) year warranty
- FCC certified remote, with dual security code

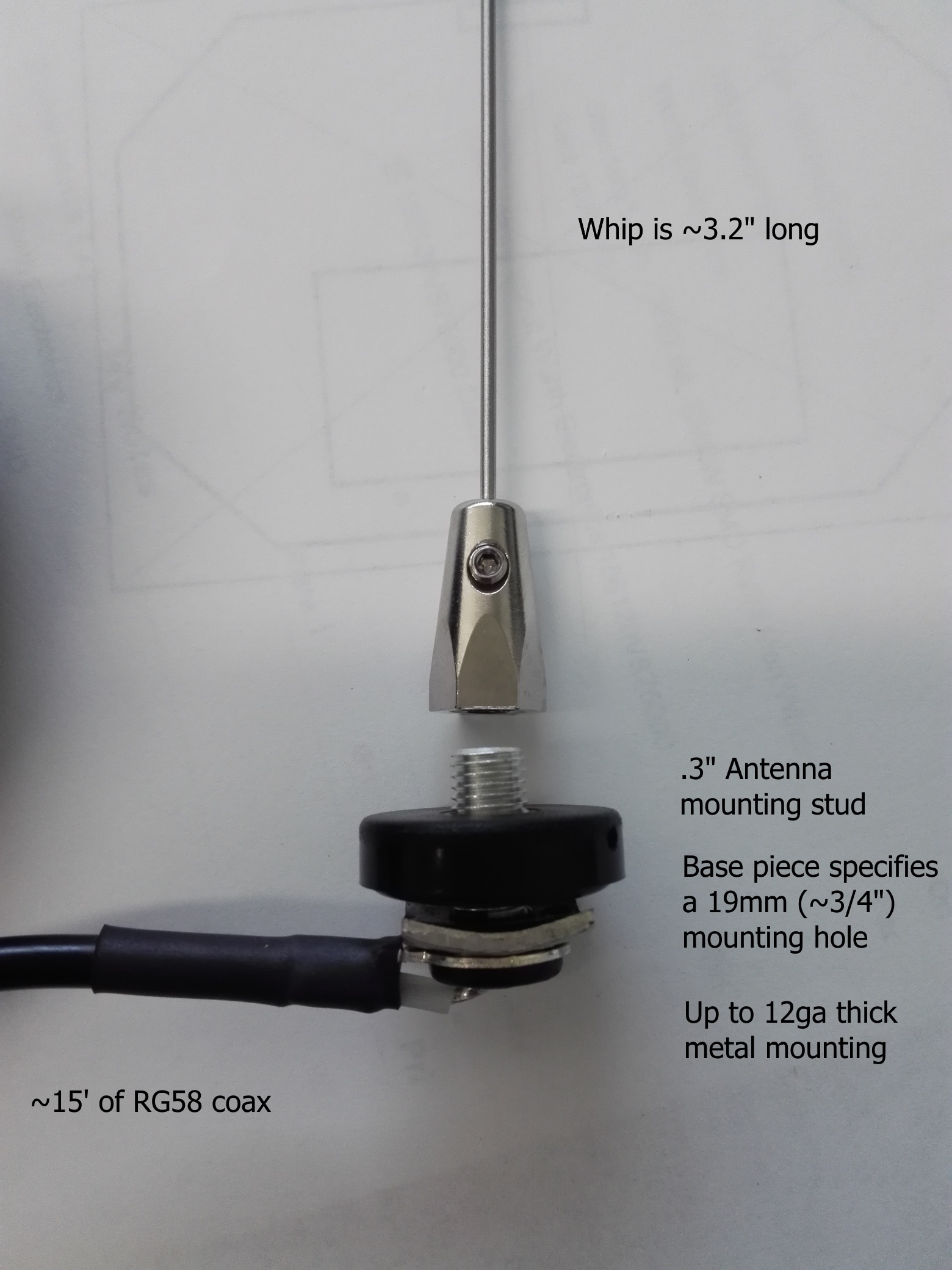

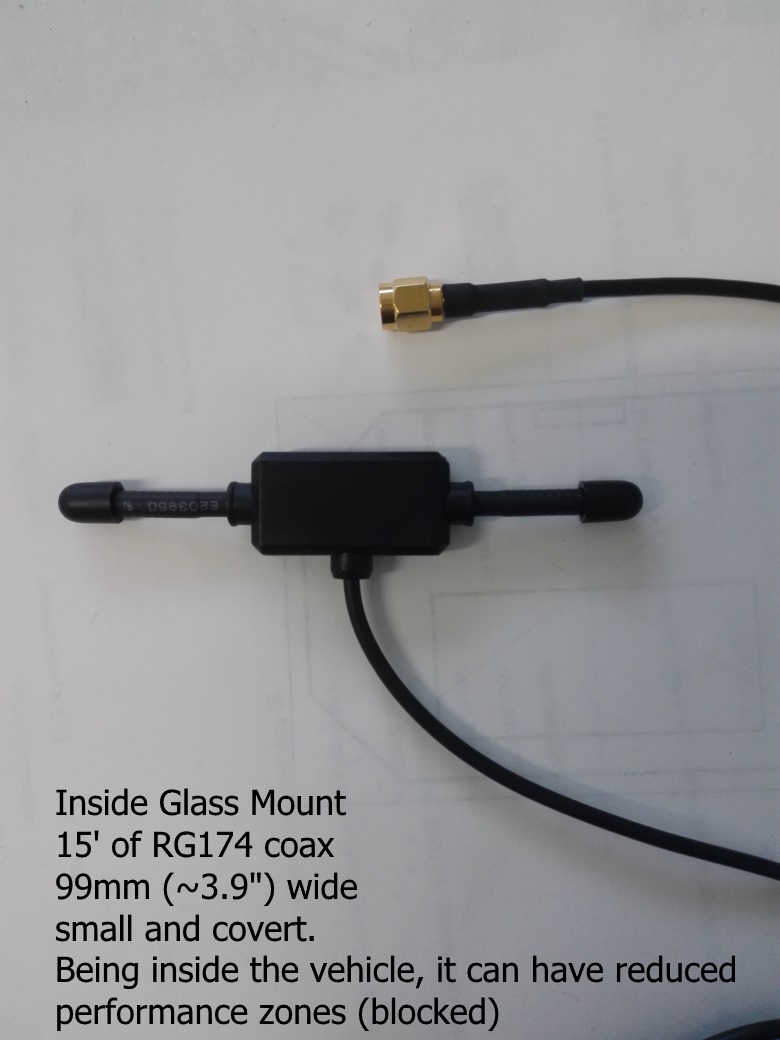

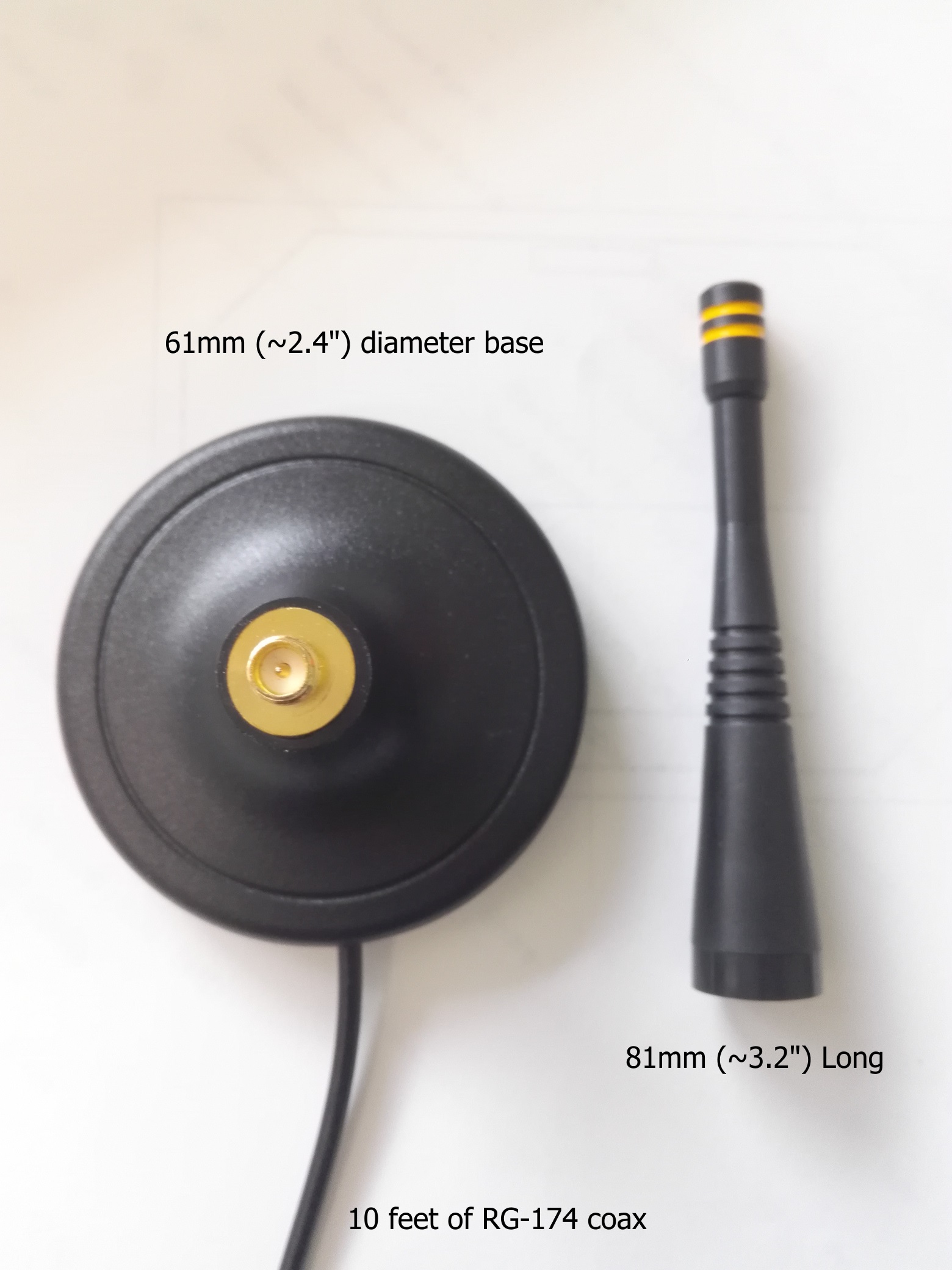

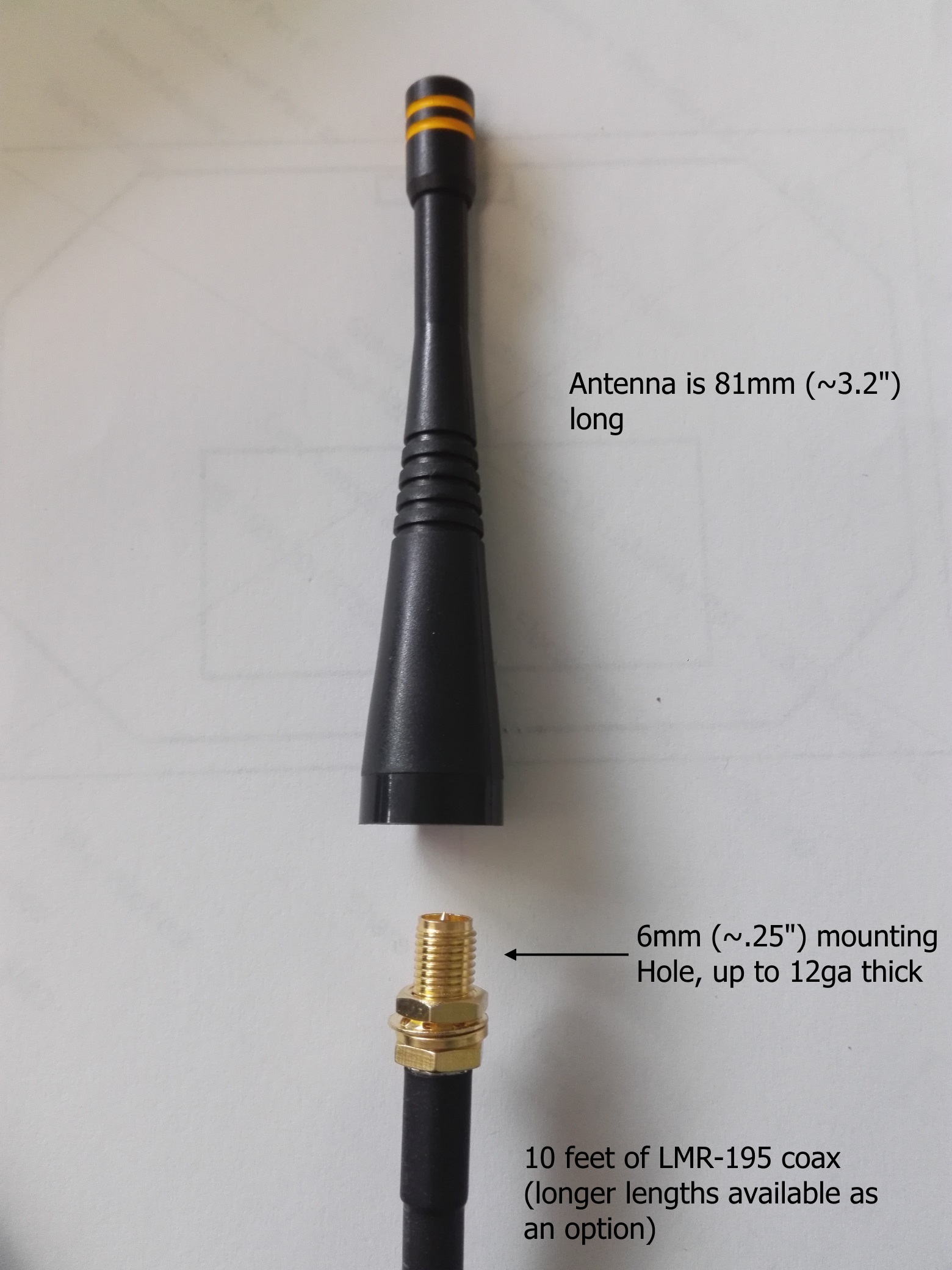

Antenna Choices:
#1
#2
#3
#4
#1
#2 #3
#4
